Download binary data

Connect the RAPID sensor to your computer

  • Plug a USB-C cable from your computer to the sensor USB-C connector.

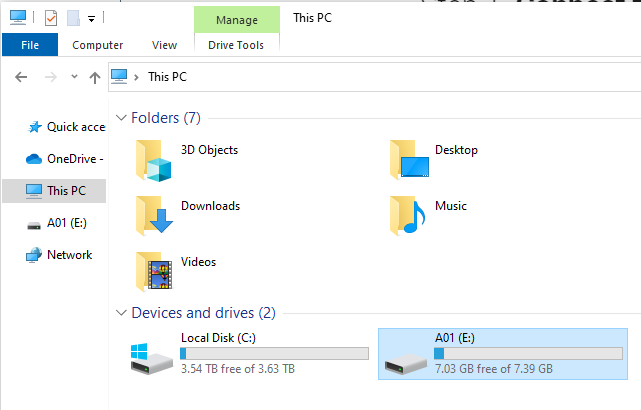

  • Access the device on your computer by clicking on the device with the same name as your RAPID sensor.

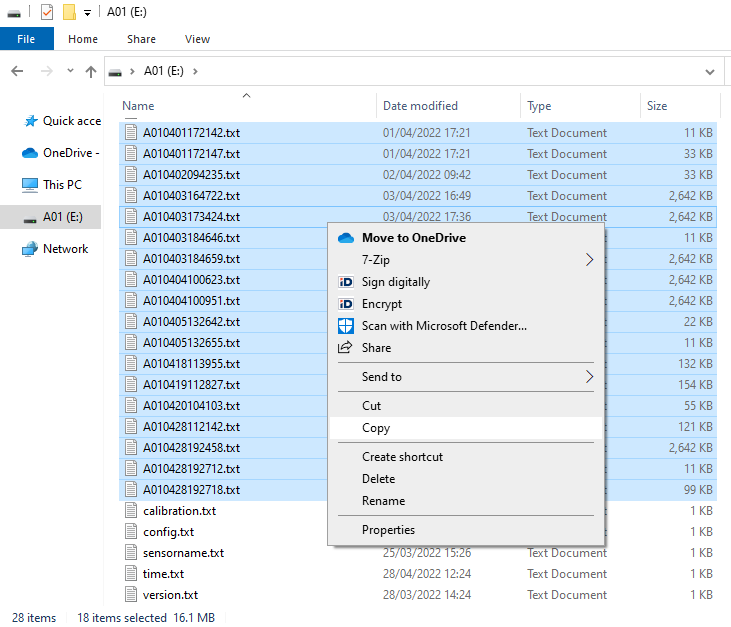

Select the data files you want to retrieve and copy them to your own directory

RAPID V1 sensors have a single file ending in .txt

RAPID V2 sensors have two files. One file at 100 Hz which logs the pressure and IMU data ending in .IMP and one file recorded at 2000 Hz logging the high-g accelerometer data ending in .HIG

Example raw RAPID data file: A010419112827.txt

  • Each time the sensor is started, a new file is created.
  • "A01" is the sensor name.
  • "0419" is the month and day, April 19th.
  • "112827" indicates that the sensor was turned on at 11:28:27 where 11 is the hour, 28 is the minute and 27 are the seconds.
  • The real-time clock keeps the date and time accurate to 10 seconds / week.
