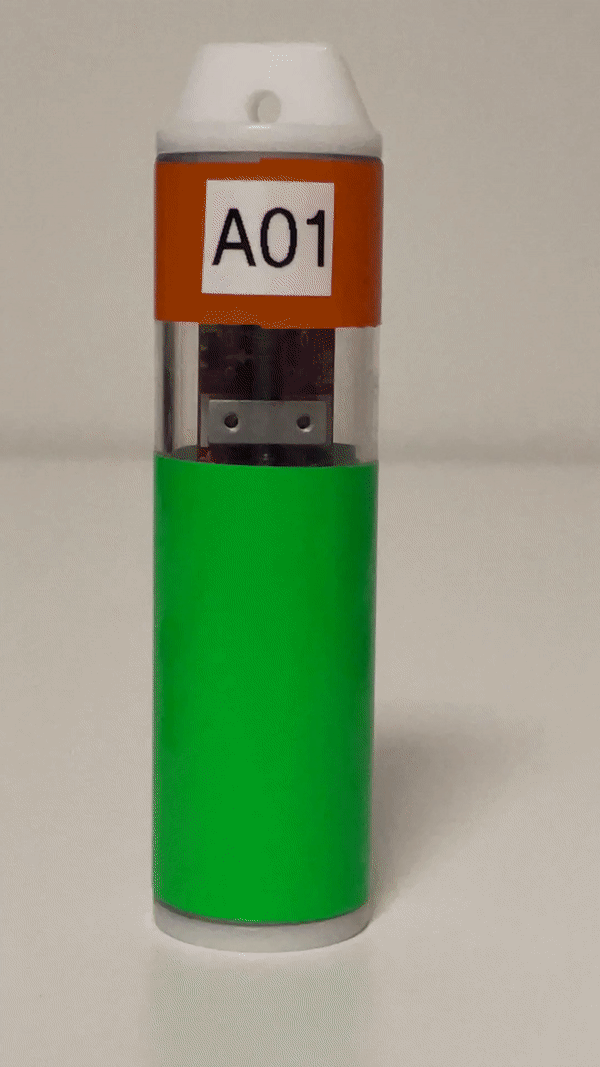

Blue |
Directly after startup, sensor initializes and updates date/time, pressure calibration, logging duration and name if changes are made to the configuration files saved on the sensor's SD card. |
 |

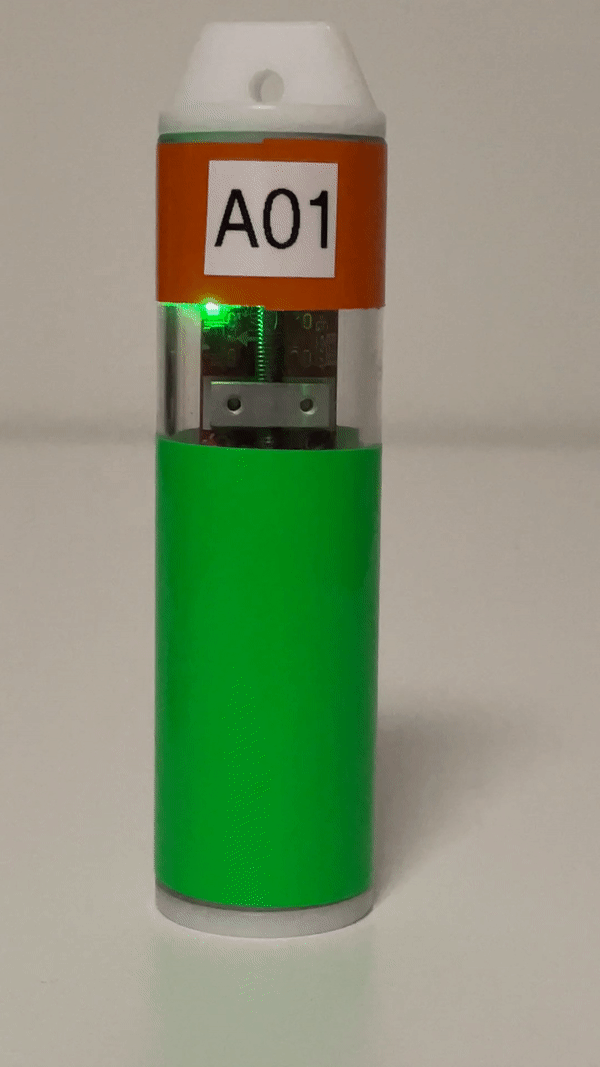

Blinking Green |
Battery is well-charged. Data is happily logging data to the microSD. |
 |

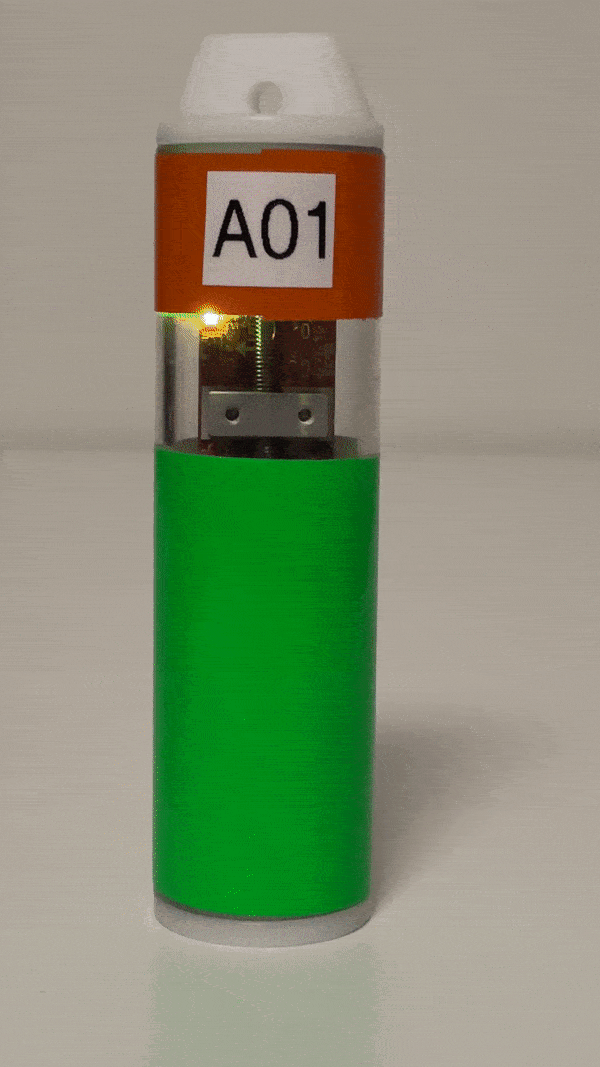

Blinking Colors |
The accelerometer is being calibrated. The sensor should be placed vertically on a flat surface. Do not touch or move the sensor during calibration. |
 |

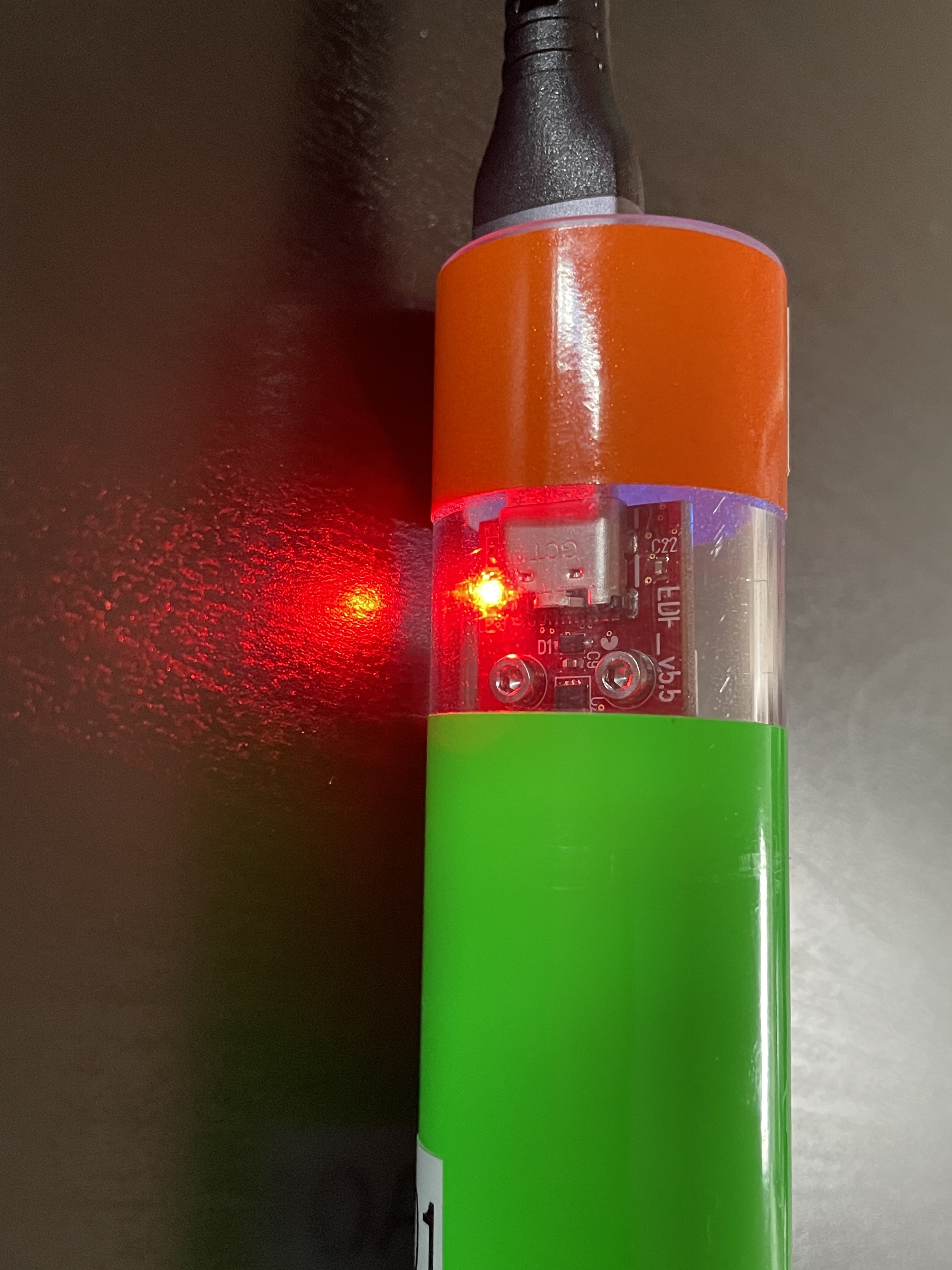

Red |
Battery charge is low! Time to full charge takes around 45 minutes at 20 C. |
 |
